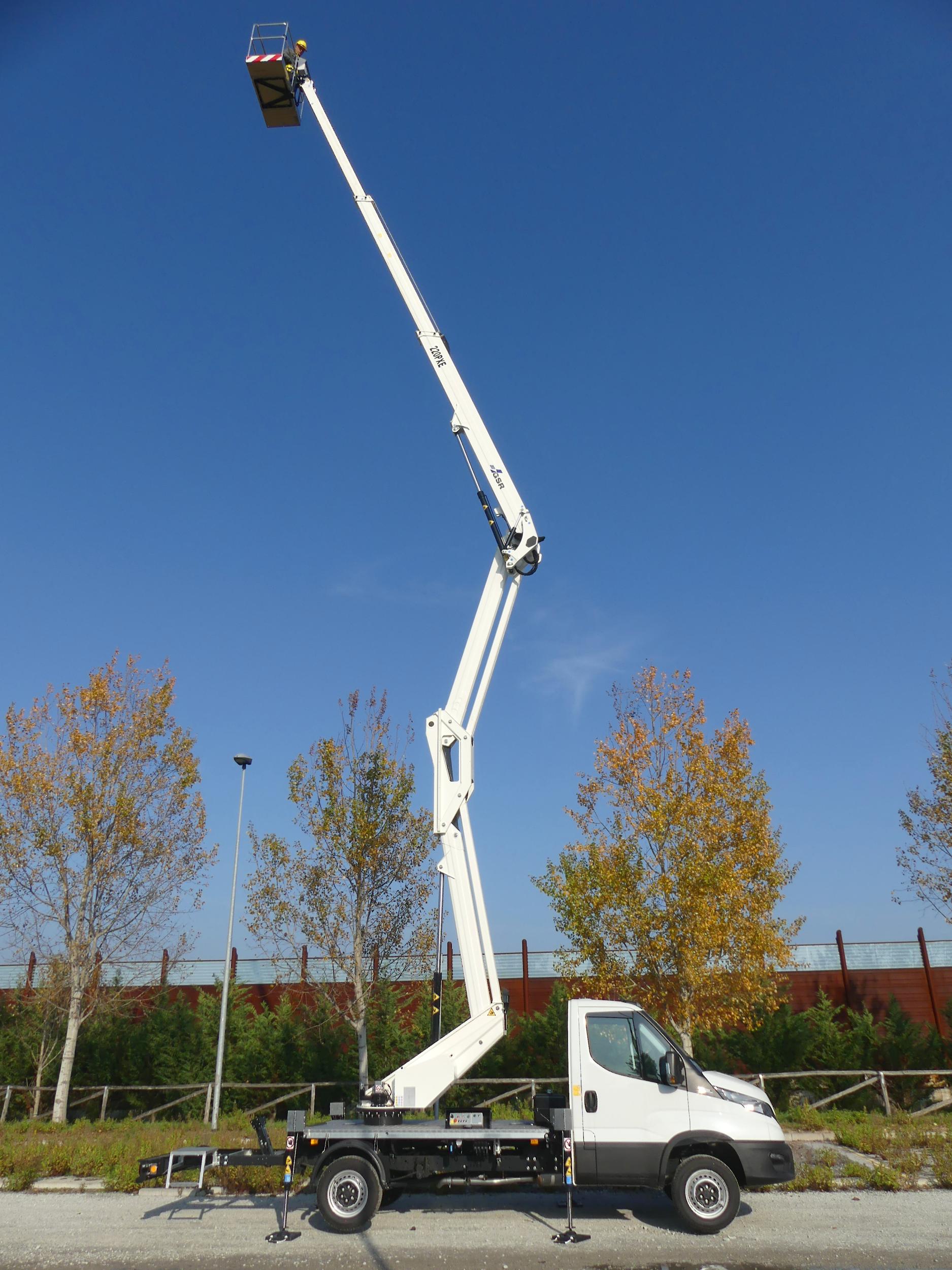

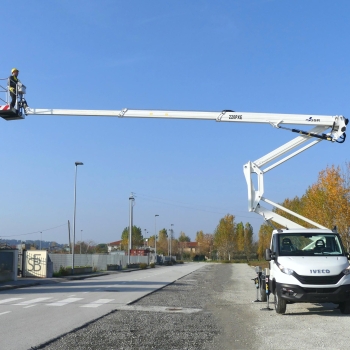

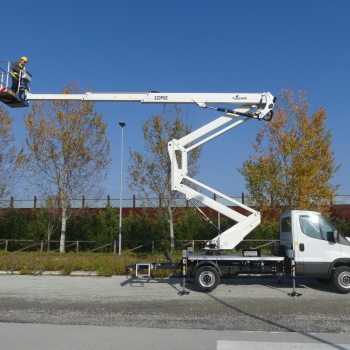

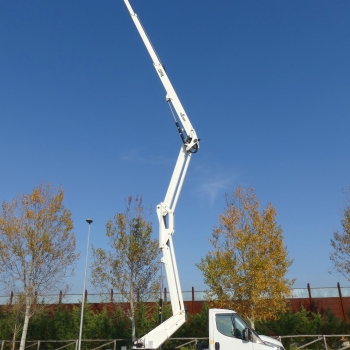

B220PXE

Series PX
Working height 21.7 m
Outreach max. 8.3/11.2 m or 8.45/11.4 m
Basket capacity 250/120 kg or 250/80 kg
N. persons 2
Turret rotation 450°
Basket rotation 90+90°
GVW min. 3.5 to

The new B220PXE platform integrates the double “up-and-over” articulation with an innovative telescopic boom
and end mounted basket.

Simple to use, with excellent outreach, allows to overcome obstacles and reach inaccessible areas until now,
without using more complex machinery.

Rigid, easy and technologically advanced:
up to 250 kg max. with horizontal outreach of 11,2 meters and 120 kg in the basket, or 11,4 meters outreach and 80 kg in the basket.

- End mounted basket for precision work (chimneys, roofs, solar panels, balconies, etc.)
which lowers the cage flat to the ground.


- Balanced and controlled swing of the articulation, making
operations easier and safer

- 360° rotation without restrictions with 250 kg in the basket up to the maximum height.

- Vertical, vehicle- width stabilization or "in shape" stabilization

- Up and over with up to 11,4 meters of outreach and 80 kg of capacity in the basket

- Simple and intuitive controls.

- Control systems among the most advanced, precise and responsive in use.

- Light weight but robust structure.

- Compact and balanced on the road like a normal car.

- Easy and intuitive, ideal for self-drive hire
